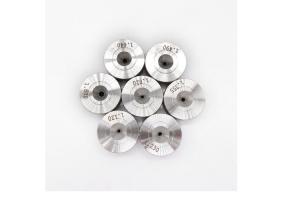

D12 Diamond Wire Dies Polycrystalline Diamond Dies For Wire Drawing

Model Number : D6 - D36

Place of Origin : China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 200 pieces per day

Delivery Time : 5-10 work days

Packaging Details : Carton, Box

Diamond Drawing Dies : Polycrystalline Diamond Dies

Material : PCD Core

Surface treatment : Polishing

Application : Wire Drawing Industry

Mold Life : 1-2 years

Transport : By Air

Contact Now

Diamond Drawing Dies, Polycrystalline Diamond Dies



1. Description:



Polycrystalline Diamond Dies are manufactured with polycrystalline diamonds, a durable synthetic material with a highly polished surface finish that minimizes friction for an exceptional resistance to die wear, cracking and breakage. When die life and wire production efficiency take precedent over wire surface finish, consider using this kind of dies.



2. Specifications:



inches mm ADDMA Maximum Diameter
0.0039-0.0157 0.100-0.400 D6 0.4
0.0079-0.0315 0.200-0.800 D12 0.8
0.0079-0.0394 0.200-1.000 D12 1.0
0.0197-0.0591 0.500-1.500 D15 1.5
0.0197-0.0591 0.500-1.500 D15 1.5
0.0315-0.0787 0.800-2.000 D18 2.0
0.0315-0.0787 0.800-2.000 D18 2.0
0.0472-0.1181 1.200-3.100 D21 3.1
0.0472-0.1181 1.200-3.100 D21 3.1
0.0591-0.1732 1.500-4.400 D24 4.4
0.0591-0.1732 2.000-4.400 D24 4.4
0.1299-0.2126 3.300-5.400 D27 5.4
0.1299-0.2183 3.300-5.800 D27 5.8
0.2008-0.2992 5.100-7.600 D30 7.6
0.3150-0.4331 8.000-11.000 D33 11.0
0.3150-0.4409 8.000-11.200 D30 11.2
0.3150-0.4724 8.000-12.000 D33 12.0
0.3150-0.4921 8.000-12.500 D33 12.5
0.3150-0.5000 8.000-12.700 D36 12.7

Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.



3. Application:



Suitable for drawing different kinds of wires, tubes, pipes, bars and etc.



4. Advantage:



You get significantly longer die life, excellent wire roundness and highly predictable die wear with a good wire surface finish.



D12 Diamond Wire Dies Polycrystalline Diamond Dies For Wire Drawing
